Prestressed anchor for post-tensioning concrete

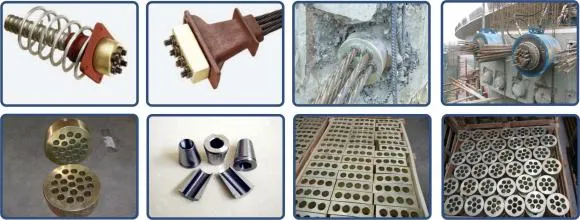

Definition of Parts:

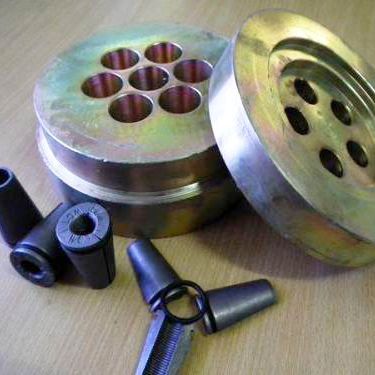

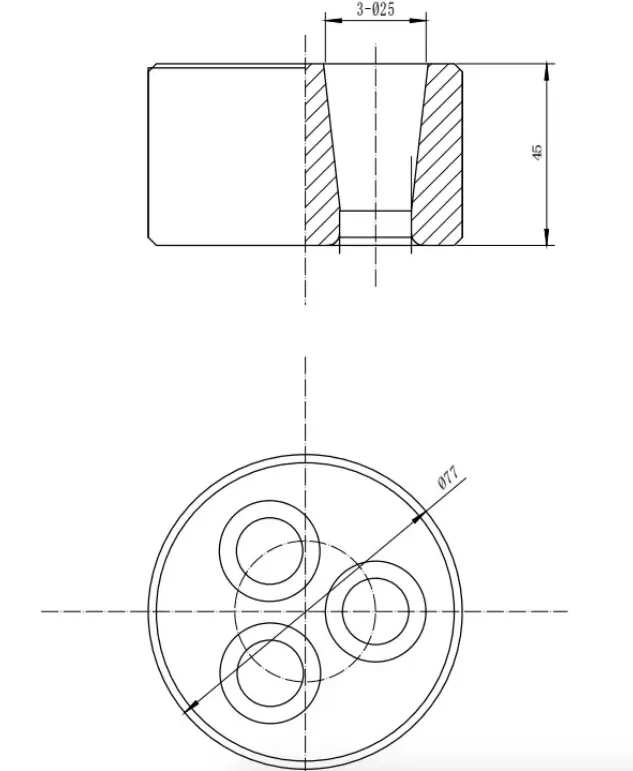

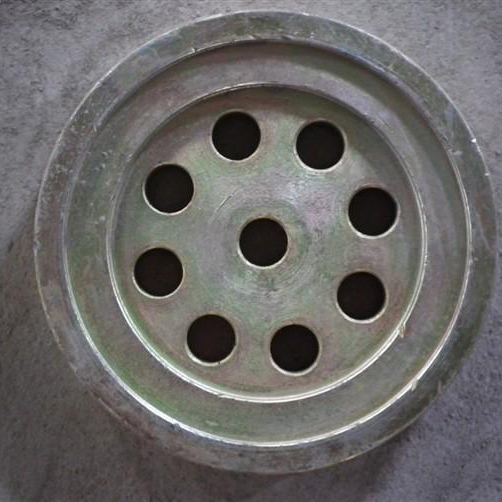

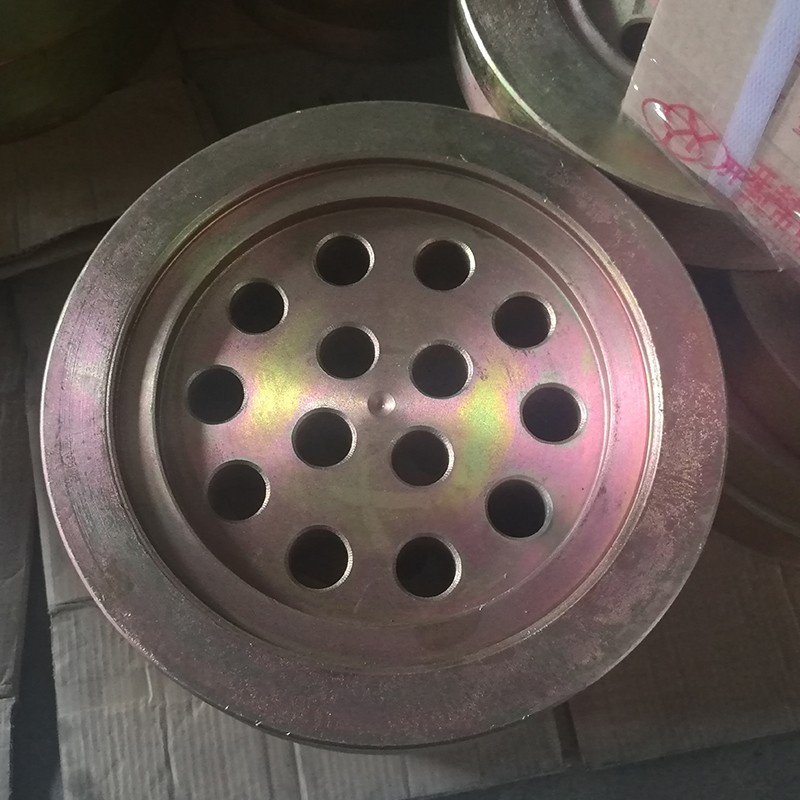

Anchor head: The key part of bearing the prestressing tension. Round anchor heads are made from 45# high-quality carbon construction steel, while flat anchorages utilize 40Cr steel. Available in both round and flat configurations.
Wedge: The critical component of the anchor system, manufactured from high-class alloy steel 20CrMnTi. Designs include two-chip and three-chip variations. The YJM15 series typically utilizes the two-chip system, suitable for round and flat anchorages, as well as porous couplers.

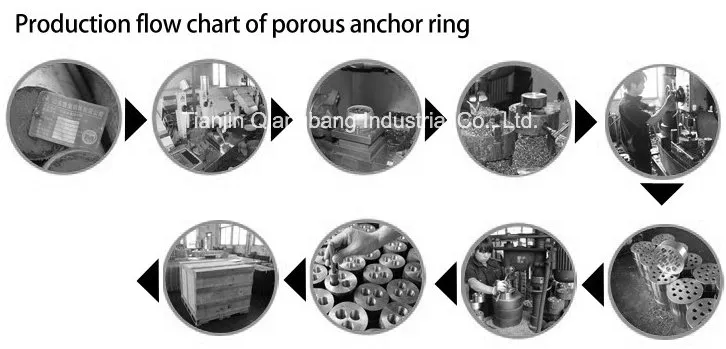

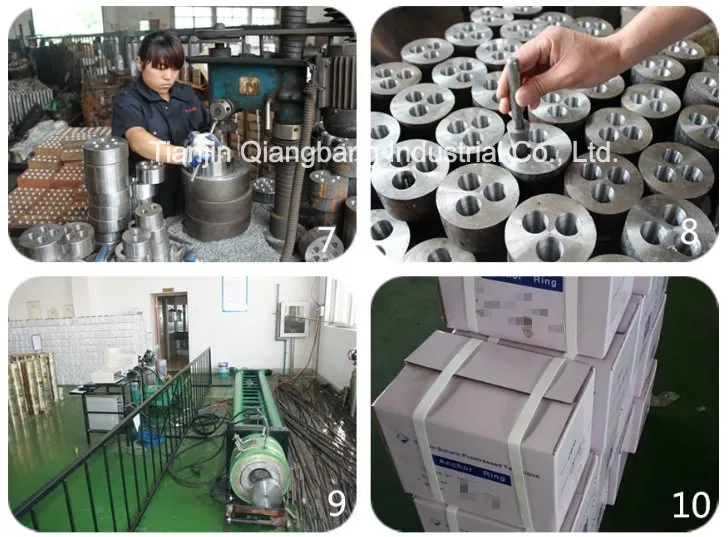

Production Process:
The YJM System consists of stress-end anchors, fixed-end anchors, anchor couplers, and corrugated pipes. It includes YJM13, YJM15, YJM18 series (round) and BM13, BM15 series (flat), alongside high-strength steel wire YJM5 and YJM7 series.
| Type | Strand Root Qty | Anchor Plate (ΦAxBxΦD) | Bellows ID (ΦD) | Anchor Ring (ΦExF) | Tension Jack |
|---|---|---|---|---|---|
| YJM13-1 | 1 | 80x80xΦ10 | - | Φ39x43 | YDC260Q |
| YJM13-2 | 2 | 135x70xΦ58 | Φ50 | Φ73x45 | YCW60B |
| YJM13-5 | 5 | 136x80xΦ62 | Φ55 | Φ98x47 | YCW100B |
| YJM13-10 | 10 | 183x120xΦ90 | Φ80 | Φ137x45 | YCW250B |
| YJM13-15 | 15 | 234x160xΦ100 | Φ90 | Φ167x50 | YCW350B |
| YJM13-19 | 19 | 244x180xΦ100 | Φ90 | - | YCW400B |
Applicable Strand Sizes:

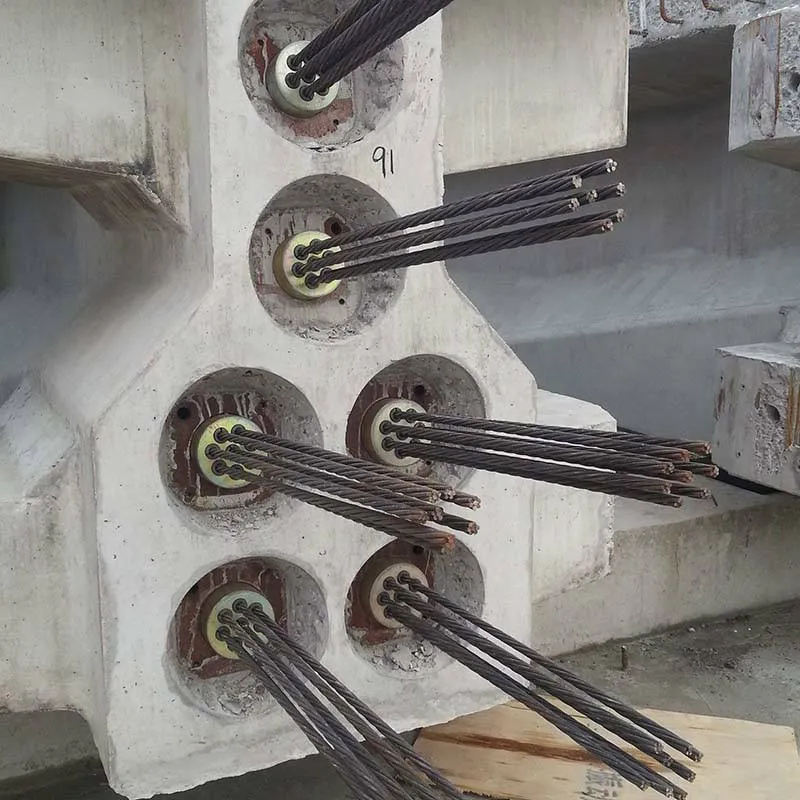

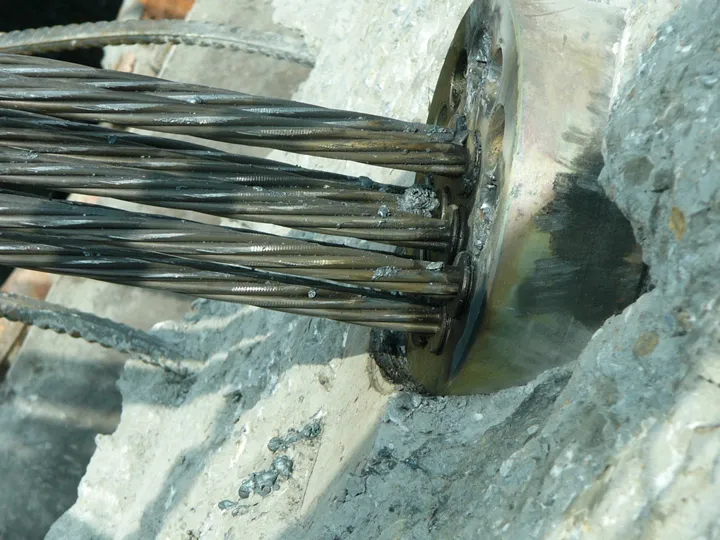

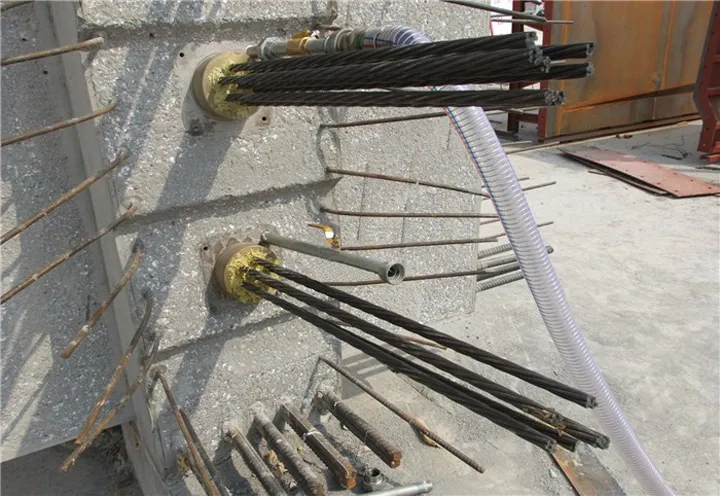

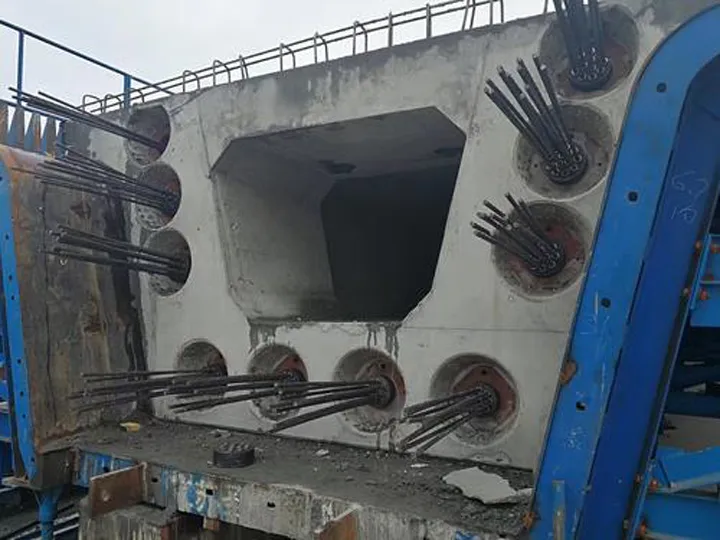

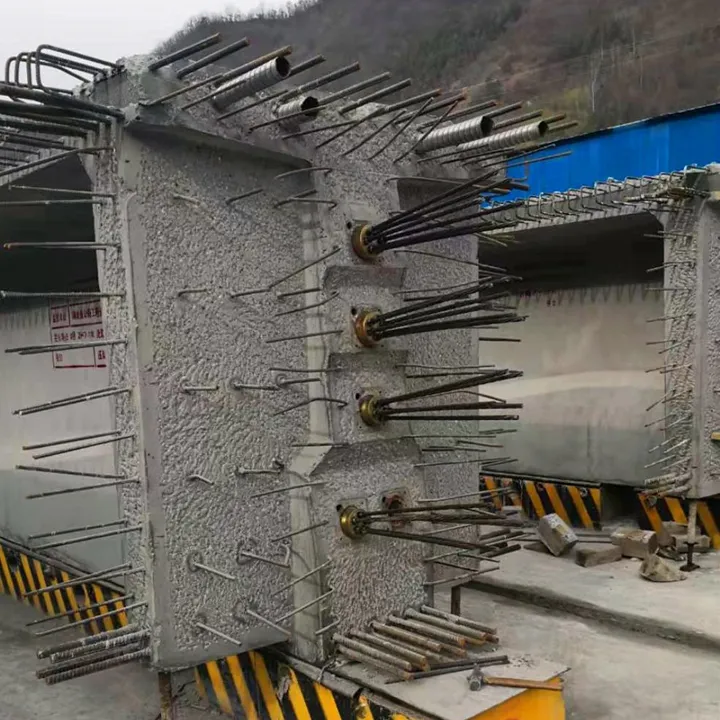

Adopted widely in modern construction for both pre-tension and post-tension concrete structures, including bridge construction, railways, highways, buildings, and channel systems.
| Product Name | Pre-stressed Anchorage |
| Material | 40Cr, 45#, 20CrMnTi, Nodular Cast Iron |
| Hardness | Anchor HRB50-100, Wedge HRC50-65 |
| Surface Finish | Tapered Bore Ra 0.8, Rest Ra 3.2 |
A1: Round anchor heads are typically made of 45# high-quality carbon construction steel, while flat anchorages are made from 40Cr steel for enhanced durability.
A2: The YM15 system is designed for use with 15.2mm, 15.24mm, and 15.7mm PC strands.
A3: Yes, the prestressed anchor system is suitable for both pre-cast tensioning and post-tensioning concrete applications.
A4: The complete system includes stress-end anchors, fixed-end anchors, wedges, anchor rings, couplers, and corrugated pipes.
A5: The wedges undergo professional heat treatment, achieving a hardness level of HRC50-65 to ensure secure gripping of the strands.
A6: They are widely used in bridge construction, railway and highway projects, multi-story buildings, and channel construction where high structural stability is required.
