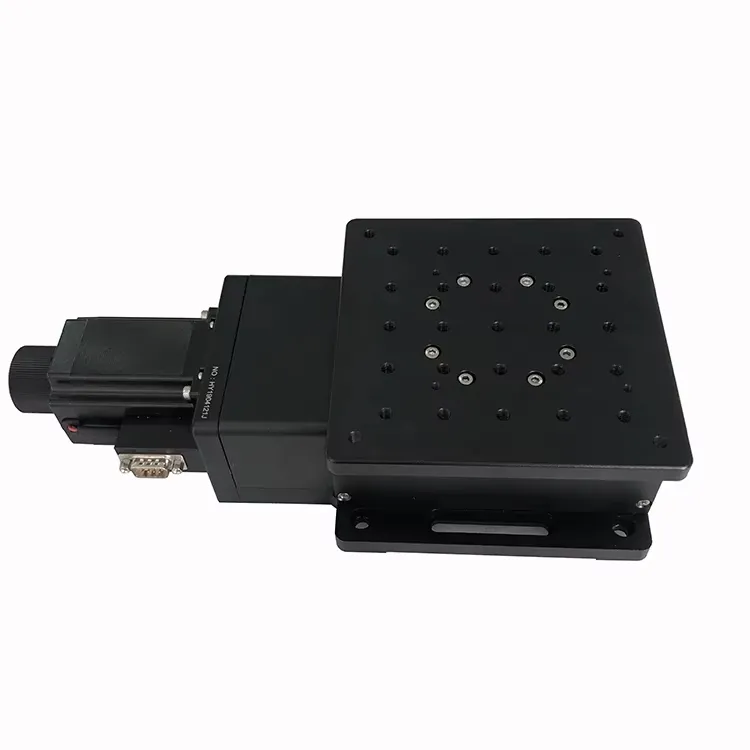

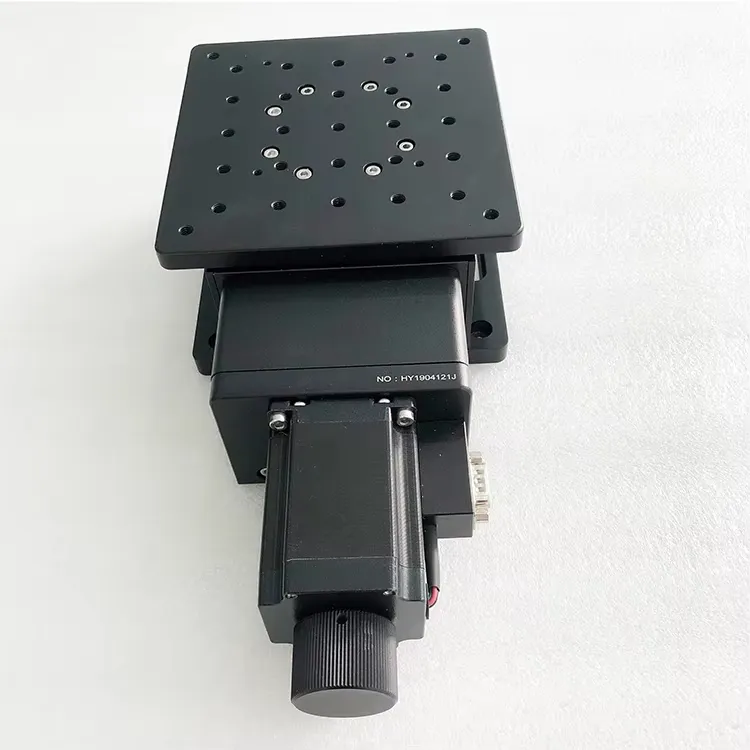

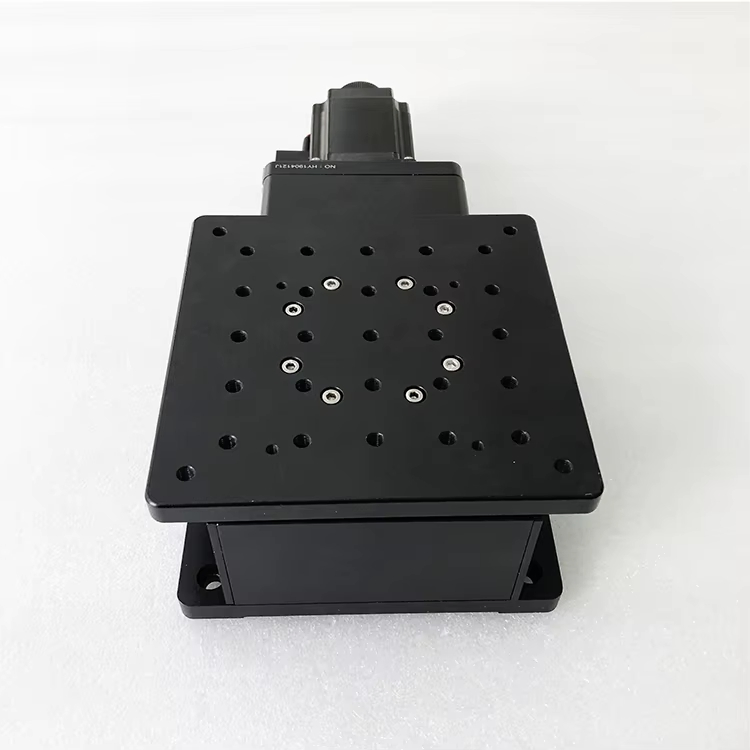

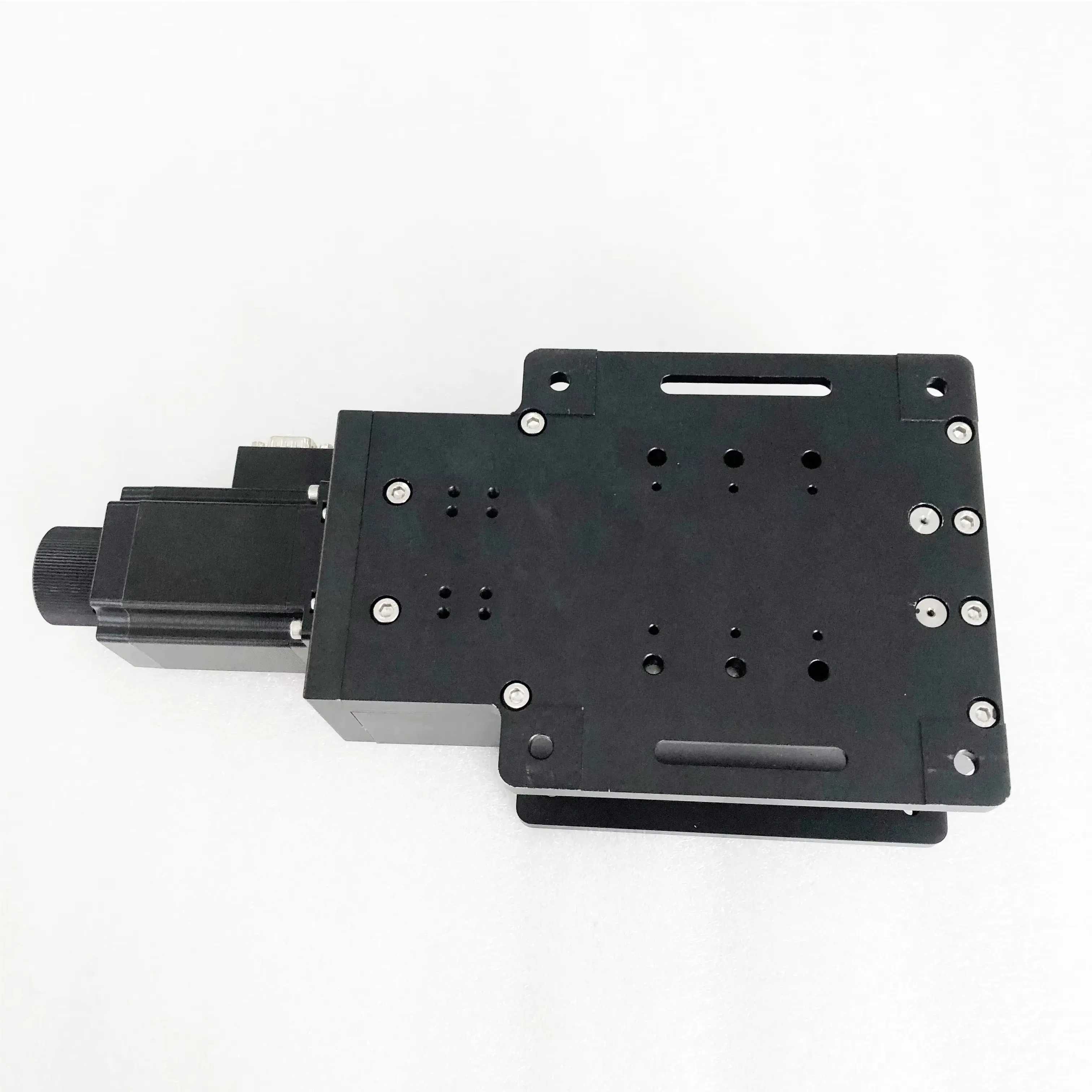

Motorized Wedge Lift Stage Precision Vertical Positioning Platform

1 / 5

Motorized Wedge Lift Stage Precision Vertical Positioning Platform

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Specifications

Model NO.	LDTDS- 20QV
Travel Range	20mm in Z Axis
Guideway Type	Crossed Roller Guide
Drive Mechanism	Precision Ground Lead Screw
Standard Motor Included	57bygh(1.8°)
Repeating Accuracy	5μm
Max Speed	3mm/Sec
Minimum Adjustment Increment	1.875μm
Center Load Capacity	40kg

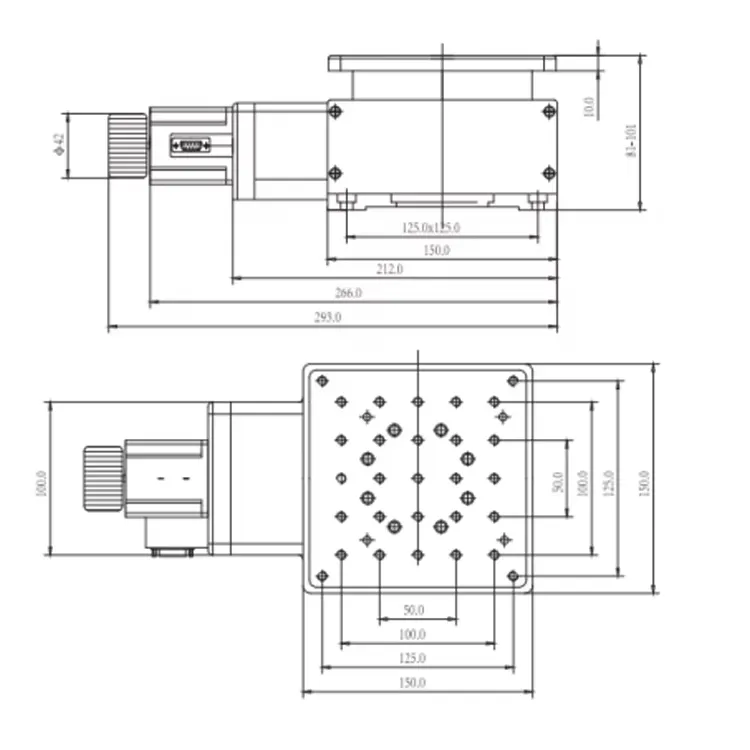

Platform Dimension	150X150mm
Package Size	31.00cm * 18.00cm * 12.00cm
Package Gross Weight	5.500kg

Product Features & Display

Professional Capabilities

Customized Experimental Solutions: We can design solutions tailored to different experimental environments, sites, and conditions. As a professional company specializing in research, development, design, production, and service, we adhere to "precision isolation" production standards and maintain a unique corporate culture.

Since 2000, our technical reach has extended across major regions. Our clients include prominent universities and scientific research institutions in fields such as physics, laser technology, optics, precision processing, biological engineering, and electro-physiology. We are committed to a rigorous practical attitude to ensure client satisfaction and build long-term partnerships.
